KV16M ECU

$6,375.00

Available on backorder

Categories: ,

Description

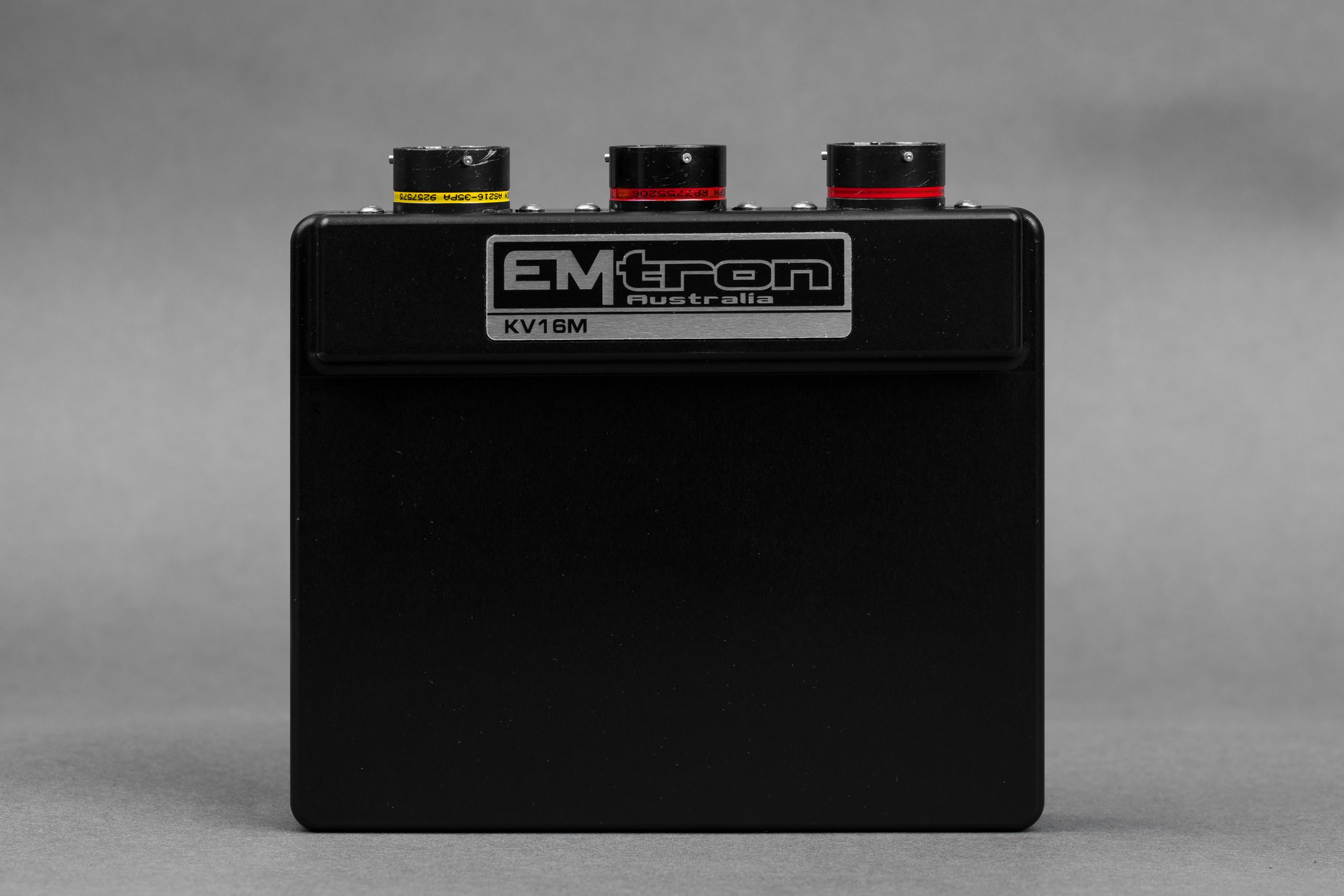

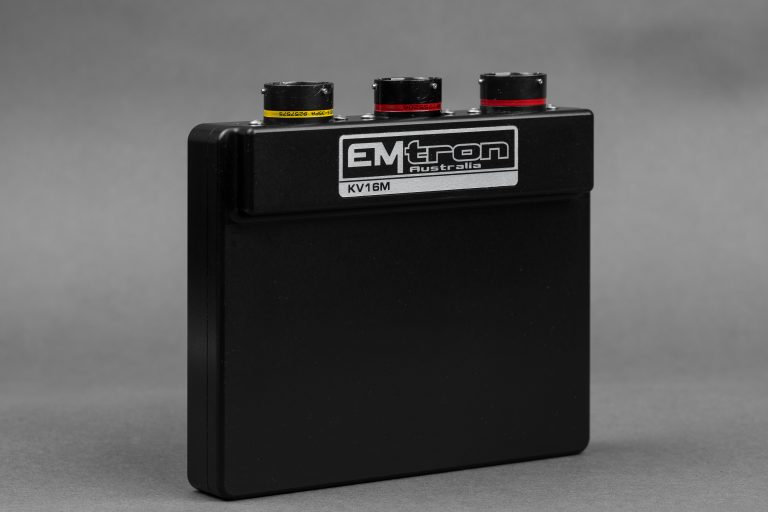

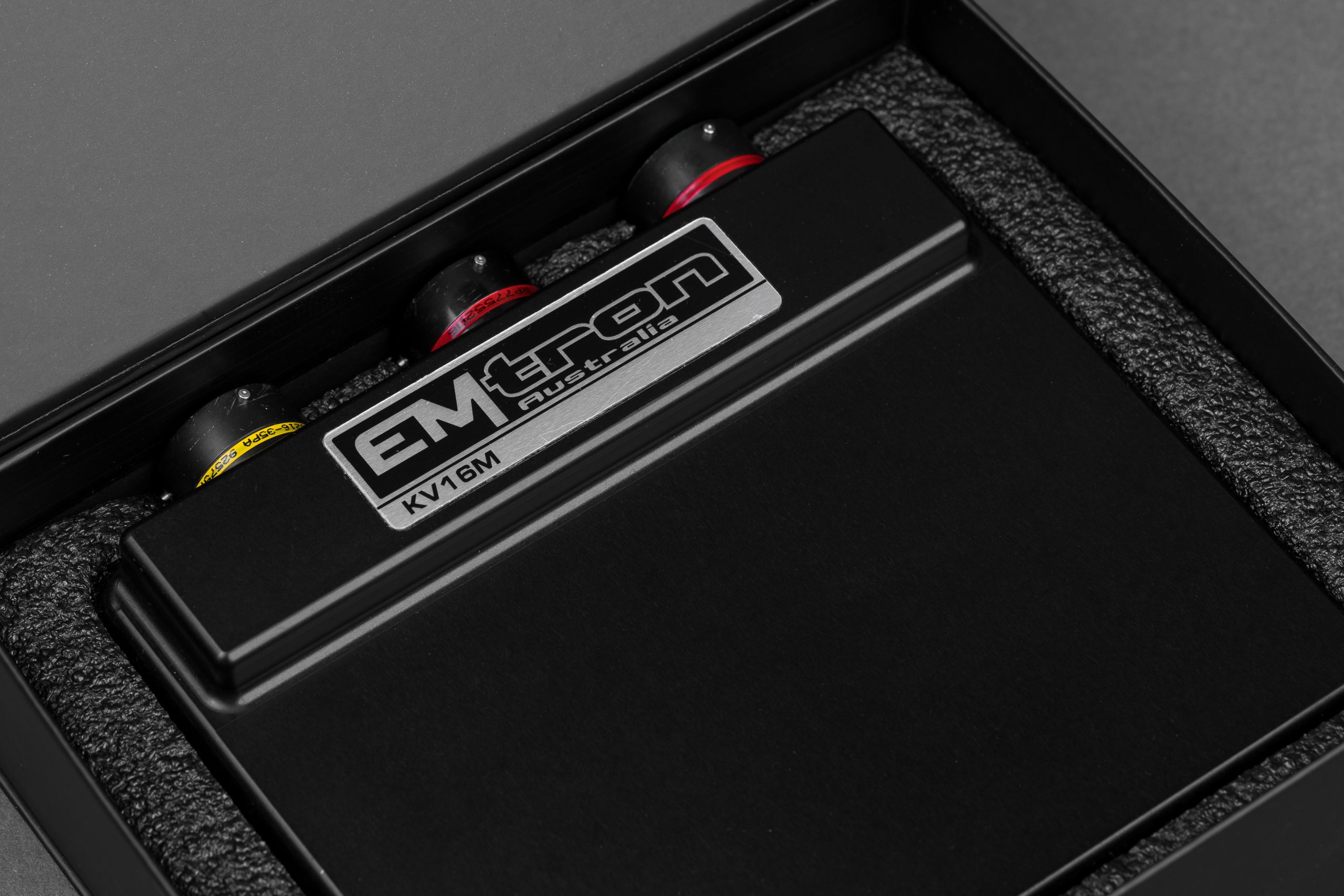

The Emtron KV16M motorsport wire-in ECU is built on the race proven KV16 ECU platform with additional flexibility and reliability through utilizing 136 Way Deutsch Autosport Connector System.

Power Supply

  • Operating Voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
  • Operating Current: 440mA at 14.0V (excluding sensor and load currents)
  • Reverse Battery Protection via External Fuse
  • “Smart” Battery Transient Protection

Operating Temperature

  • Max operating range: -30 to 110°C (-22 to 230°F)
  • Recommended operating range: -30 to 85°C (-22 to 185°F)

Physical

  • 6061 grade aluminum CNC billet enclosure
  • Enclosure size 134 mm x 162 mm x 27 mm
  • Weight: 750g
  • Waterproof

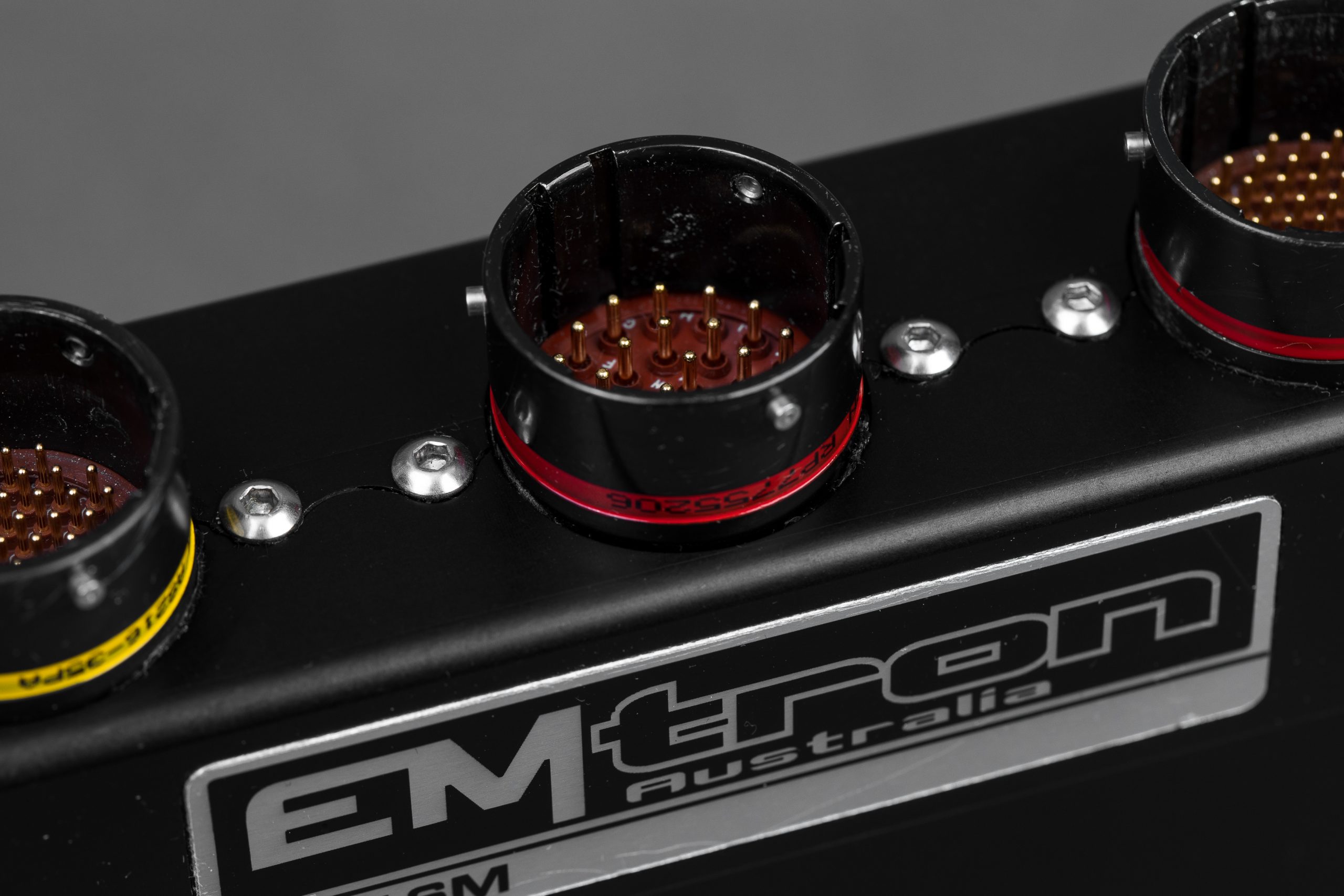

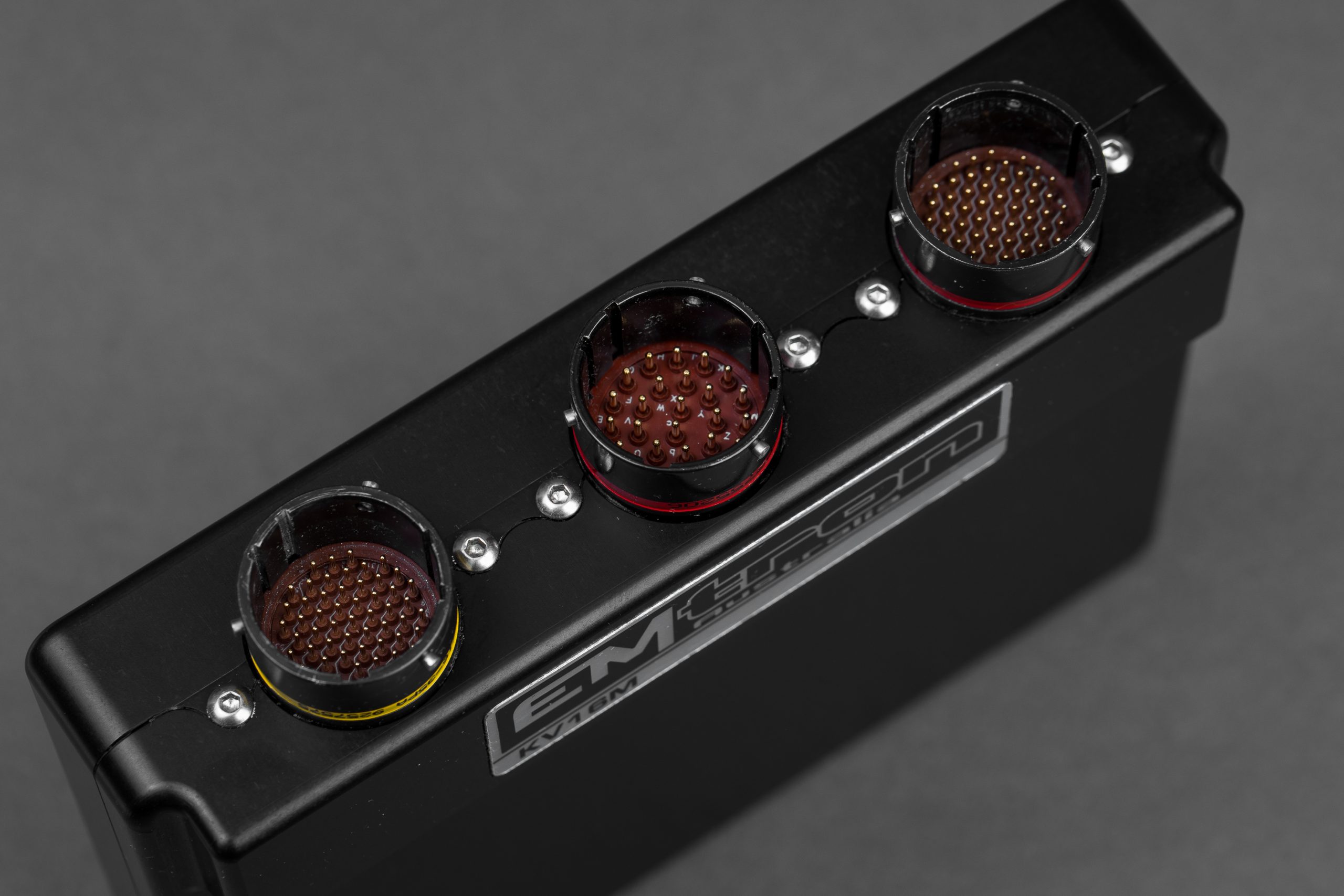

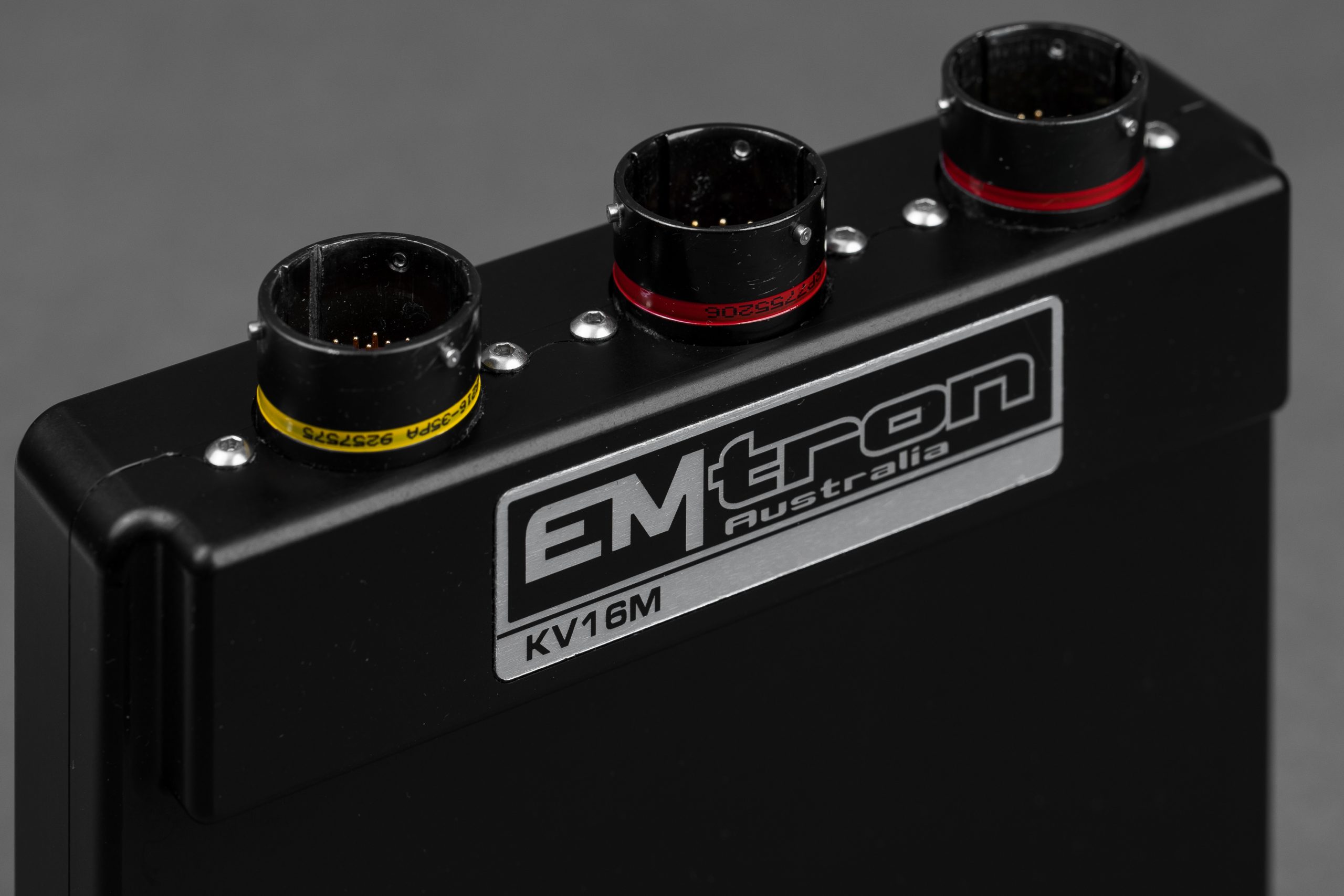

  • Connector system: 136 way waterproof connectors with gold plated contacts
    • 1 x 55 Way Deutsch Autosport (Red)
    • 1 x 26 Way Deutsch Autosport (Red)
    • 1 x 55 Way Deutsch Autosport (Yellow)

Internal

  • Dual 100MHz Processors
  • 500Mb DDR RAM (0.5Gb)
  • 32MB ECU logging Memory
    • Over 1200 channels available
    • 1Hz to 500Hz logging rate
  • 6 channel Oscilloscope function
    • Sampling at 100k samples/second
    • Includes Crank and Cam sensors inputs
    • Includes Digital Inputs 1-8
  • 3-Axis Accelerometer
    • 16 Bit Resolution
    • +2g/+4g/+8g dynamically selectable full-scale
    • Output Data Rate 500Hz

Communications

  • 1x High Speed Ethernet 100Mbps for tuning software connection
  • 2x CAN 2.0B 1Mbps/ 6 Channels per node, total 128 messages

KV16M ECU Data Sheet

KV16M ECU Pin Out

Additional information

Dimensions 10 × 10 × 6 in
