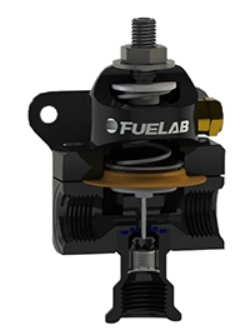

575 Series Mini Blocking Fuel Pressure Regulator
$221.05
Description
FUELAB® 575 Series Fuel Pressure Regulators are true precision instruments designed to regulate fuel. These units feature an advanced poppet design for smooth regulating capability. We’ve also incorporated a no-creep soft seat that’s methanol and E85 compatible in a mini body profile.
Select fuel pressure range depending on your application.
Regulator Features
- A true precision instrument to regulate fuel
- Advanced poppet design for smooth regulating capability
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Methanol compatibility with a No-creep soft seat
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8” NPT gauge port with plug for external pressure gauge
- 1/8” NPT breather vent
- Backed by a limited lifetime warranty
Also available in RED, BLUE, PURPLE, GOLD and GREEN
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 5 × 4.75 in |
| Pressure Range | CARB 4-12PSI, CARB 1-3PSI, TBI 10-25PSI, EFI 25-65PSI |
